What is Electrostatic Shielding and How Can It Be Achieved?
Electrostatic shielding is a method used to protect sensitive electronic devices and equipment from the effects of external electric fields. It works by preventing electric fields from reaching the protected area, thereby ensuring that the device operates without interference from external static charges or electromagnetic disturbances.
This concept is important in many fields, including electronics, telecommunications, and even in the protection of individuals from harmful electric fields. In this article, we will discuss what electrostatic shielding is, how it works, and the various methods used to achieve it.

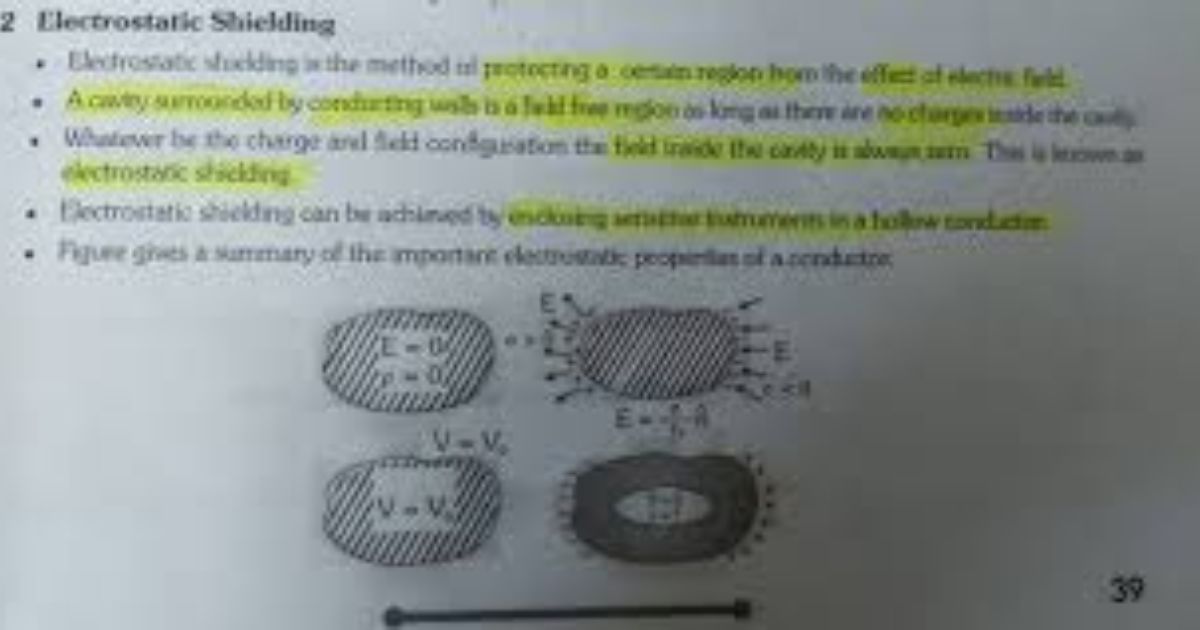

What is Electrostatic Shielding?
Electrostatic shielding refers to the process of reducing or eliminating the effect of an external electric field on a specific region by using a conductive material that blocks the electric field. This can be achieved through the use of materials that can redirect or absorb electric fields, thus protecting the sensitive components inside.
The principle behind electrostatic shielding is based on Gauss’s Law, which states that the electric field inside a conductor is zero when the conductor is in electrostatic equilibrium. The electric field from an external source cannot penetrate a closed conducting surface; hence, any sensitive electronic components inside a conductor will be shielded from external electric fields.
Key Points about Electrostatic Shielding:
- External electric fields do not affect the interior of a conductor.
- Conductive materials such as metal are typically used for shielding.
- It prevents damage to electronic devices by blocking unwanted electric fields.
How Does Electrostatic Shielding Work?
Electrostatic shielding works by creating a shielding enclosure that prevents external electric fields from entering the protected space. The shielding material, often a conductor like metal, acts as a barrier that redistributes electric charges in a way that cancels out the effects of external electric fields inside the shielded region.
Key Mechanisms:
- Faraday Cage Effect: The Faraday cage is one of the most common methods of achieving electrostatic shielding. A Faraday cage is essentially a hollow conducting structure (such as a metal mesh or solid metal enclosure) that blocks external electric fields. When a conducting material surrounds a space, it causes the charges within the conductor to rearrange themselves in such a way that no electric field exists within the enclosed space.
- Example: A microwave oven is a practical example of a Faraday cage. It uses metal to shield the microwave radiation from escaping and causing interference, while allowing the food inside to be safely heated.
- Redistribution of Charges: When a conductor is placed in an external electric field, free charges inside the conductor move in such a way that they neutralize the external electric field within the interior of the conductor. This results in zero net electric field inside the conductor, effectively shielding the area inside from the external electric influences.
- Example: A metal box can be used to shield delicate electronics from static charges. The metal box redirects external electric fields around it, ensuring that the devices inside remain unaffected by the fields outside.
Methods of Achieving Electrostatic Shielding
Electrostatic shielding can be achieved in various ways, depending on the application and the materials available. Below are some common methods used to achieve electrostatic shielding:
1. Conductive Materials
The use of conductive materials is the most straightforward way to create electrostatic shielding. Materials such as copper, aluminum, or steel are commonly used because they are good conductors of electricity and can effectively block electric fields.
- Aluminum foil is a commonly used material for DIY electrostatic shielding due to its excellent conductivity and flexibility. It can be wrapped around electronic devices to block static charge.
2. Faraday Cages
A Faraday cage is an enclosure made of conductive material that blocks external electric fields from penetrating inside. The cage can be in the form of a solid shell or a mesh, depending on the level of shielding required. The mesh or shell must be made of a material with good electrical conductivity.
- Example: A small Faraday cage can be created using a wire mesh around sensitive equipment. This is particularly useful in protecting small devices from lightning strikes, radio frequency interference, and electromagnetic interference (EMI).
3. Shielded Cables
For electronic devices and equipment that require signal transmission (like data cables or power lines), shielded cables can be used to prevent interference from external electric fields. These cables have a layer of conductive material (like aluminum foil or braided copper wire) surrounding the inner wires, preventing external fields from affecting the signals transmitted through the cables.
- Example: Ethernet cables used for networking can have a shield to protect data transmission from external electrical noise.
4. Coating with Conductive Paint
In some cases, devices can be coated with conductive paint to create an electrostatic shield. This type of paint contains metallic particles, such as aluminum or copper, which make it conductive. The coating forms a protective layer that blocks external electric fields while still allowing the device to function normally.
- Example: Electronics manufacturers sometimes use conductive coatings to shield electronic components in enclosures or casings.
5. Grounding the Shielding Material
For enhanced effectiveness, the electrostatic shield can be grounded. Grounding the conductive material provides a safe path for electric charges to dissipate, ensuring that any charge accumulation on the shield is neutralized. Grounding helps in avoiding any potential build-up of charge that could lead to a voltage difference.
- Example: The metal casing of a sensitive instrument can be grounded to prevent static electricity from building up and causing damage to the device.
Applications of Electrostatic Shielding
Electrostatic shielding is used in various fields and industries to protect sensitive equipment and ensure proper functioning. Some common applications include:
- Electronic Devices: Electrostatic shielding is used to protect sensitive electronic components in devices like smartphones, computers, and medical equipment.
- Power and Signal Cables: Shielded cables are commonly used in power transmission and signal lines to prevent external interference and ensure signal integrity.
- Microwave Ovens: As mentioned earlier, microwave ovens use Faraday cages to prevent radiation leakage and ensure safe operation.
- Research and Laboratories: Sensitive instruments, such as those used in scientific research, are often placed in Faraday cages to protect them from electrical noise and interference.
Conclusion
Electrostatic shielding is a vital technique used to protect sensitive devices and systems from harmful external electric fields. By using conductive materials or creating Faraday cages, electrostatic shielding prevents interference that can cause malfunctions or damage to electronic equipment. It is achieved through the redistribution of charges, the use of conductive materials, grounding, and careful design.
Understanding how electrostatic shielding works is essential for designing reliable, interference-free devices and systems, especially in fields where precise and accurate functioning is crucial.
