What Type of Image Can a Convex Lens Make?

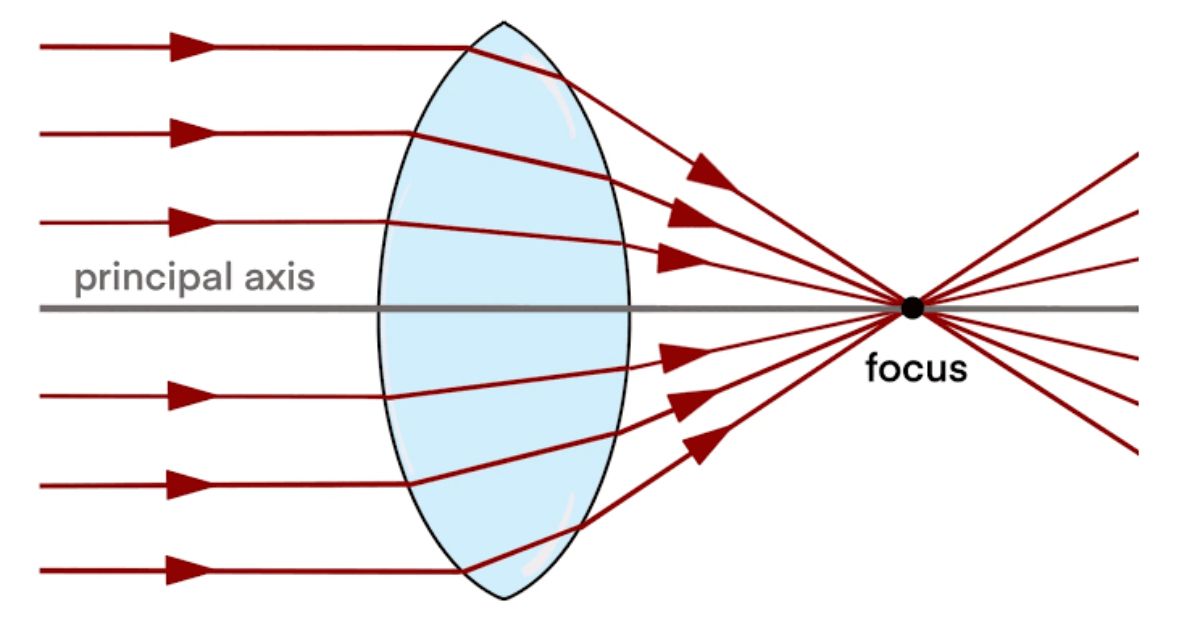

A convex lens is a type of lens that is thicker in the middle and thinner at the edges. It is commonly used in optical devices like eyeglasses, cameras, microscopes, and magnifying glasses. Convex lenses are known for their ability to bend light rays in such a way that they can converge (bring together) light rays to form an image. The type of image formed by a convex lens depends on the position of the object relative to the lens and the focal length of the lens.
In this article, we will discuss the different types of images that a convex lens can produce.
Types of Images Formed by a Convex Lens
A convex lens can form different types of images depending on the object’s distance from the lens. The image characteristics can be summarized in terms of size, orientation, real or virtual, and inverted or upright. Let’s explore each scenario in more detail.
1. Object Beyond 2F (Twice the Focal Length)
When the object is placed beyond twice the focal length (2F) of the convex lens, the image formed is:
- Real: The image can be projected onto a screen.
- Inverted: The image will be upside down.
- Smaller: The image will be smaller than the object.
- Between F and 2F: The image will be formed on the opposite side of the object.
Example:
If you place an object (such as a book) at a distance greater than 2F from the lens, the image formed will be real, inverted, and smaller. It will be formed on the opposite side of the object.
2. Object at 2F
When the object is placed exactly at 2F, the image formed is:
- Real: The image can be projected onto a screen.
- Inverted: The image will be upside down.
- Same Size: The image will have the same size as the object.
- At 2F: The image will be formed at the same distance on the opposite side of the lens.
Example:
If you place the object at a distance exactly equal to 2F, the image will have the same size and will be inverted, appearing at a distance of 2F on the opposite side of the lens.
3. Object Between F and 2F
When the object is placed between F (the focal point) and 2F, the image formed is:
- Real: The image can be projected onto a screen.
- Inverted: The image will be upside down.
- Larger: The image will be magnified (larger than the object).
- Beyond 2F: The image will be formed beyond 2F on the opposite side of the lens.
Example:
If the object is placed between F and 2F (say, at a distance of 1.5F), the image will be real, inverted, and magnified. It will be formed beyond 2F on the opposite side of the lens.
4. Object at F (Focal Point)
When the object is placed exactly at the focal point (F) of the convex lens, the image formed is:
- Real: The image can be projected onto a screen.
- Inverted: The image will be upside down.
- At Infinity: The image will be formed at infinity, making it appear as if the light rays are parallel.
Example:
When the object is placed at F, the rays from the object emerge parallel after passing through the lens, and the image formed will appear at infinity.
5. Object Closer than F (Inside the Focal Point)
When the object is placed inside the focal point (i.e., closer to the lens than the focal point), the image formed is:
- Virtual: The image cannot be projected onto a screen.
- Upright: The image will be in the same orientation as the object (not inverted).
- Magnified: The image will be larger than the object.
- Same Side as the Object: The image will be formed on the same side of the lens as the object.
Example:
If you place the object closer to the lens than the focal point (i.e., at a distance less than F), the image formed will be virtual, upright, and magnified. This is the principle behind a magnifying glass.
Summary Table of Image Characteristics for a Convex Lens:
| Object Position | Image Type | Image Orientation | Size of Image | Location of Image |
|---|---|---|---|---|
| Beyond 2F | Real | Inverted | Smaller | Between F and 2F (opposite side) |
| At 2F | Real | Inverted | Same size | At 2F (opposite side) |
| Between F and 2F | Real | Inverted | Larger | Beyond 2F (opposite side) |
| At F | Real | Inverted | At infinity | At infinity |
| Inside F (closer than F) | Virtual | Upright | Magnified | Same side as object |
Conclusion
A convex lens can create different types of images depending on the position of the object relative to the focal length. These images can be real or virtual, inverted or upright, and either magnified or diminished. The key factor determining the nature of the image is the distance between the object and the lens. Understanding these principles helps in a wide range of optical applications, from magnification to projection and beyond.
